Unplanned/uncontrolled movement of rail equipment
Unplanned/uncontrolled movements of rail equipment create high-risk situations that may have catastrophic consequences. Between 2010 and 2019, the trend of unplanned/uncontrolled movements was on an upward trajectory.
Despite significant safety action taken by Transport Canada and the railway industry since the Lac-Mégantic accident (TSB Railway Investigation Report R13D0054) to reduce the number of unplanned/uncontrolled movements of rail equipment, the number of occurrences has continued to trend upwards, posing a significant risk to the rail transportation system.
Whether in the rail yard or on a main track, unplanned and uncontrolled movements of train cars can mean high risk for crews, equipment and the public.
Since the 2013 derailment tragedy in Lac-Mégantic, significant safety actions have been implemented to reduce uncontrolled movements, but the number of occurrences continues to rise.
The TSB defines uncontrolled movements into three categories, each requiring a unique safety strategy:
Insufficient securement of unattended rolling stock
Movement of cars in rail yards being switched without air brakes
and the loss of train control and the ability to stop with available brakes.
This issue will remain on the Watchlist until Transport Canada, the railways and labour unions work together to implement physical and administrative defences to address each type of uncontrolled movement.
Learn more about Watchlist 2020 at tsb.gc.ca/watchlist
How often does this happen?
Uncontrolled movements are low-probability events, but when they occur, either on or off the main track, they can have catastrophic consequences—particularly if they involve dangerous goods. As demonstrated in Lac-Mégantic, the cost to human life and our communities can be incalculable.

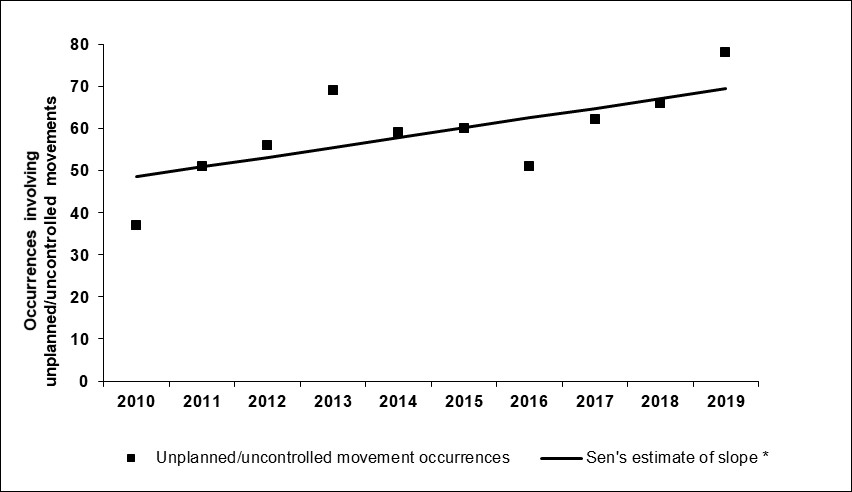

Between 2010 and 2019, the trend of unplanned/uncontrolled movements was on an upward trajectory, with a peak of 78 occurrences in 2019.
* Upward trend in occurrences over the period (τb = 0. 6293, p = 0.0119). Sen’s estimate of slope is an unbiased estimator of the true slope of the trend line.
The TSB has categorized unplanned/uncontrolled movements into three distinct types:
- Insufficient securement of rolling stock when left unattended, which was causal in the Lac- Mégantic disaster and other occurrences (TSB rail transportation safety investigations R13D0054, R15D0103, and R16W0059);
- Uncontrolled movement of cars in rail yards while they are being switched without the use of air brakes, was causal in several occurrences (TSB rail transportation safety investigations R15T0173, R16W0074, R17V0096, R17W0267, R18Q0046, and R19C0002);
- A crew member loses control of a train and cannot stop the movement with the available brakes, was also causal in several occurrences (TSB rail transportation safety investigations R16T0111, R16W0242, R18E0007, and R18H0039).
|Type of uncontrolled movement||2010||2011||2012||2013||2014||2015||2016||2017||2018||2019||Total|
|Switching without air||10||16||12||24||21||22||18||21||27||31||202|
|Loss of control||2||3||0||3||0||1||4||2||5||1||21|
The risks to people, property, and the environment
Uncontrolled movements pose a significant risk to railway employees. When such movements involve the main track, the public—including passengers and people in the vicinity of the railway tracks—can also be exposed to risk. The risks increase significantly when a train carries dangerous goods.
The derailment of a crude oil train in Lac-Mégantic, Quebec, in 2013, which directly caused the death of 47 people and destroyed the town’s core and main business area, was the result of an uncontrolled movement. Since then, the TSB has published 12 investigation reports on uncontrolled movements in which four employees died and two employees were seriously injured,Footnote 1 Footnote 2and is currently investigating three additional occurrences (TSB rail transportation safety investigations R18M0037, R19C0002, and R19C0015)in which four employees died.
Outstanding TSB recommendations
The Board has made two recommendations relating to uncontrolled movements:
Recommendation R14-04 states that
the Department of Transport [should] require Canadian railways to put into place additional physical defences to prevent runaway equipment.
TSB Recommendation R14-04
Recommendation R20-01 states that
the Department of Transport [should] work with the railway industry and its labour representatives to identify the underlying causes of uncontrolled movements that occur while switching without air, and develop and implement strategies and/or regulatory requirements to reduce their frequency.
TSB Recommendation R20-01
The Board has issued one safety concern relating to uncontrolled movements. As a result of the investigation into the March 2016 uncontrolled movement of equipment that travelled onto the main track in Saskatoon, Saskatchewan (TSB Railway Investigation Report R16W0074), it was determined that, despite TC and industry initiatives, the desired outcome of significantly reducing the number of uncontrolled movements has not yet been achieved. Consequently, the Board issued the following safety concern:
The Board is concerned that the current defences are not sufficient to reduce the number of uncontrolled movements and improve safety.
Transport Canada has made the following progress in relation to Recommendation R14-04:
- Working to amend the Railway Employee Qualification Standards Regulations to reflect changes in the evolving railway industry.
- Created a remote control locomotive (RCL) guideline recommending action to be taken by the railways regarding the training and qualification of employees in RCL operation.
- Continues to revise the Railway Locomotive Inspection and Safety Rules, for requirements specific to locomotives equipped with roll-away protection.
- Revised Rule 112 of the Canadian Rail Operating Rules (CROR) to include specific instructions on hand brake effectiveness testing and a chart indicating the number of handbrakes required relevant to the length and location of such equipment.
- Issued a ministerial order and a new rule, CROR Rule 66, regarding the securement of trains stopped in emergency on heavy and mountain grades.
Transport Canada and the railway industry have taken some significant actions with additional administrative defences to prevent these occurrences, and actions to mitigate them through the use of physical defences such as derail devices where appropriate. However, the desired outcome—to reduce the number of these types of occurrences—has not been achieved. In fact, in 2019, there were 78 uncontrolled movements, the highest annual number in the past 10 years. Over the 10 years from 2010 to 2019, there has been an average annual increase of 2.33 occurrences per year, with 71% of these related to switching without air. These uncontrolled movements continue to pose a significant risk to the rail transportation system.
In its 2020 assessment of Recommendation R14-04, the Board considered the response to be Satisfactory in Part. The Board was still assessing TC’s response to recommendation R20-01 at the time of publishing Watchlist 2020.
While all three categories of unplanned/uncontrolled movements share some common causes, they each require unique strategies either to prevent the occurrences from happening or to reduce the associated risks. TC, the railway companies, and labour unions must collaborate, devise strategies, and implement physical and administrative defences to address each type of uncontrolled movement. For the safety of railway workers and the public, the TSB wants to see a downward trend in the number of such occurrences.
