Aviation Investigation Report A06Q0188

On 21 November 2006, an Air Canada Jazz CL-600-2B19 (registration C-GJZF, serial number 7545) with 49 passengers and 3 crew members on board was being operated as a scheduled flight from Vancouver, British Columbia, to Prince George, British Columbia. At about 1514 Pacific standard time, the aircraft was cleared for a non-precision approach on Runway 33 at Prince George Airport. While established on final approach, the flight crew was informed of a special weather observation, indicating conditions below the published minima. The flight crew continued the approach and set the flaps at 45 degrees. On reaching the final approach fix, the flight crew conducted a missed approach and noted that the flaps remained jammed at 45 degrees.

The flight crew members diverted to their alternate airport, Grande Prairie, Alberta. The aircraft was cleared to maintain 15 000 feet and vectored toward Grande Prairie. At 1537, the flight crew requested radar vectors to Fort St. John, British Columbia, about 155 miles away, and declared an emergency due to a low fuel prediction at destination. At 1616, the aircraft landed without further problem at Fort St. John with about 500 pounds of fuel remaining, equivalent to less than 10 minutes of flight. There were no injuries.

Records indicate that the flight crew members were certified and qualified in accordance with existing regulations and approved procedures.

At about 1436 Pacific standard time,^{Footnote 1} Air Canada Jazz CL-600-2B19, operated as Flight 8205, departed Vancouver for a 47-minute flight to Prince George. According to the operational flight plan (OFP), the minimum fuel requirement at take-off was 5738 pounds and the calculated fuel burn to destination was 2405 pounds. According to the flight data recorder, the take-off roll was initiated with 6100 pounds of fuel on board, which exceeded the OFP minimum fuel requirements by 362 pounds.

Based on the terminal area forecast (TAF) issued at 0942, the weather conditions to be expected at the time of arrival at destination were as follows: ceiling 2000 feet above ground level (agl), visibility 3 statute miles in light snow and wind from 010° true (T) at 15 knots gusting to 25 knots. While en route, two new TAFs were issued for Prince George, one at 1508 and one at 1519. Both indicated a deterioration of weather conditions with visibility forecast to be as low as ¼ mile in heavy snow and a vertical visibility of 200 feet expected temporarily between 1500 and 1700. The flight crew was not aware of these new TAFs. However, at 1508, the flight crew received the 1500 aviation routine weather report (METAR),^{Footnote 2} which was as follows: wind 030°T at 23 knots gusting to 29 knots, visibility 5/8 statute mile with light snow showers and drifting snow, sky obscured at 900 feet, and temperature −5°C.

The runway surface condition was 50 per cent bare and dry and 50 per cent covered with drifting snow. The runway friction index was 0.46. The flight crew communicated with the company to discuss the action plan in the case of a missed approach and to see what would be the fuel required to go back to Vancouver instead of the planned alternate. A decision was made to try an approach and then hold as long as possible before going to the planned alternate airport.

At 1514, the flight was cleared for a localizer back course, VOR DME 1 (very high frequency omnidirectional radio range distance measuring equipment) approach to Runway 33. The published landing minimum was 405 feet agl and a visibility of 1 ¼ miles. The flight crew planned for a stabilized constant descent angle (SCDA) approach. The SCDA consists of a stabilized approach to achieve a constant rate of descent. The criteria are as follows: a descent angle of approximately three degrees; stable airspeed, power setting, and attitude; and the aircraft configured for landing (flaps set at 45°) one to two miles from the final approach fix (FAF).

At about 23 miles from the threshold, the tower informed the flight crew that the ceiling was 800 feet with a visibility of ½ mile. The opposite landing runway (Runway 15) is served by a runway visual range (RVR), which indicated a visual range of 5000 feet. At 12 miles on final, the flight crew was informed of a special weather report indicating a ceiling at 500 feet and a visibility of 3/8 mile in snow and drifting snow. The flight crew continued the approach, and at about eight miles on final, the flaps were extended to 20°, the landing gear selected down, and then the flight spoilers deployed. At 3.3 miles from the threshold, less than ½ mile from the FAF, the flaps were selected to 45° and the flight spoilers were retracted.

Based on the rapidly decreasing visibility, the flight crew carried out a missed approach on reaching the FAF. At that time, the fuel remaining on board was 4000 pounds, which exceeded the OFP minimum fuel requirements to proceed to the alternate airport by 1312 pounds. As the flaps were selected to 8° and the landing gear was retracted, the "FLAP FAIL" message appeared on the engine indication and crew alerting system (EICAS). The aircraft initial climb rate was approximately 1600 feet per minute but gradually decreased with altitude until reaching 10 000 feet above sea level (asl), the initial cleared altitude. The flight was later cleared to maintain 15 000 feet asl as its final cruising altitude.

According to the quick reference handbook (QRH), if the flap failure occurs at greater than 5°, as in this occurrence, the aircraft should land at the nearest suitable airport. If the flap failure occurs at 45°, no further action is required before landing. This is based on the fact that the landing will be carried out as usual. The QRH does not take into consideration the possibility of a missed approach and the impact it would have on the aircraft performance for obstacle clearance or fuel consumption. As well, it does not provide an alternative solution to the problem. In such a case, flight crews are expected to use their good judgement. This flight crew cycled the flap electronic control unit (FECU) circuit breakers, but this did not clear the fault. The flap handle lever was then selected to different detent positions and the FECU circuit breakers were cycled again. The fault did not clear.

The flight crew members requested a diversion to their planned alternate airport, Grande Prairie, and subsequently requested to go to Fort St. John, which was slightly closer. En route, the flight crew attempted to find out what would be the best altitude and speed to provide the best fuel range. However, no such data were available. The flight management system (FMS) was used to determine the fuel prediction at Fort St. John. At 1537, the flight crew declared an emergency due to the low fuel prediction. At that time, the fuel flow was approximately 4100 pounds per hour, significantly higher than the fuel flow in cruise from Vancouver to Prince George, which was about 2700 pounds per hour. At 1616, the aircraft landed at Fort St. John without further problem with about 500 pounds of fuel remaining, equivalent to less than 10 minutes of flight.

Certification Basis

The Canadair Regional Jet (CRJ) 100/200 aircraft model CL-600-2B19 was type-certificated as a transport category aircraft in Canada on 31 July 1992, under Part 25 of the Federal Aviation Regulations (FARs), including amendments 25-1 through 25-62, with some exceptions/additions listed in the type certificate data sheet number A-131. The type certificate data sheet prescribes the conditions and limitations under which the product for which the type certificate was granted meets the airworthiness standards required by the Canadian Aviation Regulations (CARs). The type certificate holder for the CRJ 100/200 aircraft model CL-600-2B19 is Bombardier Inc.

Description of Flap System

The flap control surface system consists of one inboard and one outboard double-slotted flap (see Appendix A) installed on the trailing edge of each wing. The two inboard flap panels move through a range of 0° to 45°, and the two outboard flap panels move through a range of 0° to 40°. Each inboard flap contains one movable leading edge vane and three movable vane actuators. Each outboard flap contains one bent-up trailing edge (BUTE) door and three BUTE door actuators.

The flap selection commands are made by manually positioning the flap control lever into one of the five detents on the flap control lever assembly located on the centre pedestal. These commands go to the FECU, which operates the power drive unit (PDU) and the brake positioning sensing unit (BPSU). The FECU energizes the PDU, which drives the flaps to the selected position through the flexible drive shafts and the flap actuators. The FECU also controls the release of the brakes in the PDU and the BPSUs. The BPSU brakes are a backup to the PDU brakes. The BPSU position sensors supply flap position information to the FECU, which permit the FECU to control and monitor the position of the flap system. The FECU has 14 types of fault detectors and five signal interfaces between the FECU and the digital air data computers. The most common fault detectors are asymmetry, overspeed, underspeed, and motor current failures.

The flap actuating mechanism system consists of 10 flexible drive shafts, 4 inboard flap actuators, and 4 outboard flap actuators. The flexible drive shafts are located aft of the wing rear spar. They have different lengths and diameters. There are five different types of flexible drive shafts (two of each type). They are designated number 1 (inboard most) to number 5 (outboard most). Each flexible drive shaft comprises an outer tubing and a removable core. The core is made of steel impregnated with grease. The outer tubing is made from continuous, extruded, smooth bore, graphite/Teflon tubing with an outer layer of braided corrosion-resistant steel.

The flap position transmitters are operated by control rods attached to the hinge arms of the inboard flaps. They supply flap position signals to the EICAS for the display of flap position information to the flight crew and to the stall-protection system computers.

The skew detection system (SDS) is made up of a skew detection unit (SDU), found in the avionics compartment, and four proximity sensors and target assemblies. The proximity sensors and target assemblies are located on the outboard flap panel actuators. When the flaps are in motion, the SDU receives the four proximity inputs from the sensors and produces a digital pulse. This digital pulse is used to compare the turn rate of each of the outboard flap actuator ball screws, which allows the SDU to monitor for skew conditions (an outboard flap panel twist greater than two degrees).

Command signals from the flap control lever are sent to both channels of the FECU. Each channel controls one of the two PDU motors and has two failure detectors. Each of these detectors receives signals that show system faults. The output of each failure detector in the channel is a fail signal. This fail signal causes the disconnect relay to operate, the associated motor to stop, and both brakes to come on. The fail signal also stops the command signals that let the motor operate in the extended or retracted direction. The second motor is stopped in the same way by the other channel. The power supply and the motor and brake control circuits are common to both subsystems in each channel.

Flap Actuators

There are eight flap actuators installed on the wing trailing edge, two actuators to each flap panel. There are five types of flap actuators; the four that operate the inboard flaps are interchangeable. Each of the outboard flap actuators is different. The actuators need 801 drive shaft turns for a complete full stroke, corresponding to 0° to 45°.

The flap actuators are of the linear ball screw type gimbals mounted to the wing rear spar and the flap hinges. The ball screw circuits are dual for redundancy. They also incorporate ice scrapers and wipers. The main housing contains the drive gearset, which is lubricated by synthetic oil bath. Each flap actuator has a ball nut and screw assembly with single-stage helical gearing, lubricated by grease that is applied via a grease fitting located on the nut. A torque limiter, which is used as a load-limiting device, is comprised of a spring back and a brake assembly mechanism and is contained within the main housing inside dry cavities on either side of the gearset. The torque limiter mechanism dry cavities are segregated from the oil-filled gearbox by Teflon-based dynamic seals.

The torque limiter has a series of alternative friction plates. Half of these are splined to the input shaft and half to the stationary housing. Excess torque through the gear mesh causes the spring pack to close. This lets the input shaft and the friction plate move. This also causes a pressure on the friction plate stack, which causes brake torque, keeping the output force of the actuator to a limit.

The flexible drive shafts transmit torque from the PDU to each flap actuator and to the BPSU. Rotation of the input drive causes the ball screw shaft to turn. This rotation causes the ball nut to move along the shaft in the extend or retract direction.

Airworthiness Directives

On 06 July 1998, Transport Canada (TC) issued Airworthiness Directive (AD) CF1998-14. At the time of the occurrence, the AD was at revision number 4 (CF1998-14R4); the effective date was 25 June 2004, with a completion date of 31 December 2006. All CRJ CL-600-2B19 from serial number 7003 to serial number 7903 were affected by this AD. This revision introduced a new flap actuator and SDS for the outboard flaps. The AD is divided into six parts:

• Part I consists of an Air Operator action and proposes an amendment to the aircraft flight manual (TR CRJ/171).
• Part II is a maintenance-related action in which a visual check of each flap is conducted for evidence of twisting, skewing or abnormal deformation, and then to interrogate the FECU log menu for fault isolation.
• Part III is a modification action to be completed within 450 hours after 25 June 1999. This required the installation of new airspeed limitation placards and decals with reduced maximum flap extended speeds and a second placard requesting a visual inspection of the flaps before departure. Both decals must be installed in the cockpit.
• Part IV is a flap actuator health check inspection.
• Part V is the installation of new flap actuators within 12 months of the effective date of this revision.
• Part VI is the installation of an SDS by 31 December 2006. Compliance with the requirements of Part VI of this directive provides terminating action to all requirements of this directive.

The Federal Aviation Administration (FAA) issued AD 98-20-01 on 02 October 1998. At the time of the occurrence, this AD had been superseded by AD 2006-12-21 (effective 21 July 2006). All CRJ CL-600-2B19 serial number 7003 to serial number 7903 are also affected by this AD. This AD resulted from a number of cases of flap system failure that resulted in a twisted outboard flap panel. AD 2006-12-21 requires the following:

• installation of new flap actuators within 12 months from the effective date of this AD (by July 2007);
• installation of the SDS and the air data computer within 30 months from the effective date of this AD (January 2009);
• new airspeed limitation placards;
• a revision of the aircraft flight manual (AFM) to include revised maximum allowable speeds for flight with flaps extended; and
• a new SDS/crosswind-related limitation for take-off flap selection.

Difficulty Report and Flap Occurrences

The issue of flap failure on CL-600-2B19 aircraft has been known for many years. A review of the Service Difficulty Report (SDR) system in Canada and the United States from 01 January 2006 to 01 January 2007 indicated 751 flap problem occurrences. More than 50 per cent (381) of the occurrences involved Bombardier CL-600-2B19 series aircraft. Of these 381 events, 209 system resets were carried out without being able to identify any fault. On 20 occasions, the crew received a flap fail message on the EICAS while the aircraft was established at cruising altitude.

A flap occurrence is not in itself a reportable occurrence under the TSB regulations, and therefore the TSB database may not include all failures of this type. A review of the TSB database of flap events since 2005 indicates an increasing number of reported flap failures experienced by CRJ aircraft. There were 20 reported occurrences in 2005 and 28 in 2006. In January 2007, the TSB database indicates 31 events of flap failure, suggesting that the frequency of CRJ flap failures is increasing. These numbers only represent occurrences in Canada and include both Canadian and foreign operators.

Maintenance Related to the Flap Actuators

The current maintenance program for the actuators includes a backlash check^{Footnote 3} every 1000 hours, a functional check^{Footnote 4} of the actuators after 14 000 cycles, and an overhaul at 20 000 cycles. The life cycle limit has been established at 33 333 cycles. Records of maintenance repairs from Air Canada Technical Services (ACTS) indicates that actuators can fail at as low as 2657 cycles, long before any specific maintenance action takes place.

The ACTS facility in Montréal, Quebec, conducted a teardown of eight actuators from a CRJ aircraft that had experienced a flap failure on 30 January 2007. Of the eight actuators, four of them failed the cold temperature test at −51°C and showed the presence of contamination. These tests detect elevated drive line torque due to moisture, oil, or corrosion. The most common reason for failure is oil in the torque limiter brake cavity, which results in elevated input torque to rotate the pinion gear. Oil viscosity increases under cold temperatures to a point where oil shear forces between the brake plates increase to cause high input torque. The quality of the sealant on actuator mating surfaces was also questionable as it could often be removed by hand, thereby permitting water ingress.

Water Ingress in the Flap System

Cold weather flap jams can be due to lubrication issues (such as excessive grease on flexible drive shafts), but are more commonly an indication of water in the flap system components. When water gets into the flap system, it does so primarily through the B-nut couplings, at the ends of each flexible drive shaft. If there is no watertight seal at the flexible drive shaft couplings, water can enter the flexible drive shafts through capillary action, assisted by the movement of air in and out of the shafts due to pressure changes.

When the water freezes, it can cause high running torque or freeze the drive shaft completely. The components connected to the flexible drive shafts in the wing, the flap actuators, and the BPSUs also have air cavities. Although there are seals in the input shafts of these components, deterioration and wear of these seals can allow water that is in the flexible drive shaft to enter the actuator or BPSU.

Water ingress to the brake cases of flap actuators may occur due to the external bead seal for the seam of the actuator connector cap being compromised. The connector cap is the threaded fitting on each side of the actuator gearbox case to which the flexible drive shaft connects. Water in the actuators themselves can be confirmed by the low temperature torque check. In October 2006, Bombardier issued a modification to replace the Teflon spring seal for the flexible drive shaft with a new steel washer. These new washers were not immediately available and Air Canada Jazz had to submit a request to use an alternate type of washer. Bombardier has issued service bulletins and service letters to review all known issues related to contamination in the flap system.

Flexible drive shafts have always been a contributing factor for water to ingress the system. Careful attention must be exercised when handling, installing, and removing flexible drive shafts to prevent damage. Most problems encountered with flexible drive shafts are related to bending radius limits, contamination through wires and couplers, and excess lubrication, which can cause high, cold-temperature torque.

The flap actuators are manufactured by Eaton Aerospace. In the revised Eaton Aerospace component maintenance manual (CMM), published in January 2007, the type of grease was changed from MIL-PRF-23827 or CSM1171 to MIL-PRF-23827C, Type II (Aeroshell 17). Previously, operators were using either type I or type II grease, with the mention that they not be mixed together. Tests during the investigation revealed that the type of grease used for ball nut lubrication could have been a contributing factor to flap system failures.

Low-Temperature Torque Check

According to the Eaton Aerospace CMM, a low-temperature torque check is performed by placing the actuator in a cold chamber until the temperature stabilizes at −40°C (−40°F) ± 2.5°C. Using a torque wrench and an input adapter, the technician rotates the input shaft clockwise for two complete revolutions at a speed of approximately one revolution per 2.0 seconds. The acceptable cold temperature breakout torque should not exceed 15.0 inch-pounds. The manufacturer has also established a temperature range limitation of −40°C to 75°C.

In the Bombardier aircraft maintenance manual (AMM), it is stated that the low-temperature torque check is done when it is suspected that there is water in the actuator. Flap actuators must be removed from the aircraft to do a low-temperature torque check. The test is done at a temperature of −51°C (−60°F); the maximum input breakout torque has been established at 18 inch-pounds. The AMM also states that, if the measured torque is more than the value in the table for a given temperature, the actuator is unserviceable. A review of the Bombardier AMM and Eaton Aerospace CMM is required to reconcile the differences with respect to temperature and torque values for the low-temperature torque check.

CRJ 200 C-GJZF Maintenance on Flap System

Maintenance records following the 21 November 2006 incident show that a noticeable amount of water was extracted from the actuators' ball nuts during the greasing process.

Following this incident, C-GJZF was involved in four other flap failure events-one in November 2006, two in December 2006, and one on 10 January 2007. A review of the aircraft maintenance records showed that Air Canada Jazz maintenance personnel were dealing with a varying array of symptoms. During the troubleshooting process, they replaced the PDU four times, the FECU three times, the left BPSU four times, the right BPSU two times, the flap handle one time, flexible drive number 5 one time, and three actuators on the last maintenance action related to the flap system. After 10 January 2007, there were no other reported flap failure incidents with this aircraft.

When water is suspected in the flap system, the fault isolation manual (FIM) directs the mechanic to specifically do a torque check of the flap drive system and not the low-temperature torque check as specified in the AMM. The torque check is carried out at ambient temperatures varying from 15°C to 35°C. The investigation revealed that the detection of faulty actuators is possible using a low-temperature torque check. The low-temperature torque check was not performed following detection of water in the actuators on 22 November 2006 as was required by the AMM.

Actuators that were removed on 10 January 2007 were tested at the ACTS facility in Montréal. The following results were obtained:

• Left number 3, part number 853D100-19, serial number 2777 (total time of 6965.4 hours), failed the cold test at a temperature of −51°C with 70 inch-pounds. There was oil in the brake side from an inside seal leaking and minor corrosion was found on the shaft.
• Right number 1, part number 852D100-11, serial number 2962AB (total time of 10953.4 hours and 9367 cycles), failed the input torque at 28 inch-pounds. The maximum retract torque should be 4 inch-pounds and this unit shows 28 inch-pounds. It also failed the extend torque, which should be 10.8 inch-pounds and it was at 36 inch-pounds. The axial play on the ball screw and ball nut was 0.013 when the maximum should be 0.005. End play on the ball screw and main housing was 0.018 when the maximum should be 0.003. It was found to be dangerous to continue testing at higher speeds and loads.
• Right number 4, part number 854D100-20, serial number 2566, (total time of 6949.4 hours and 6118 cycles), failed the cold test at −51°C with 25 inch-pounds. The unit was found to have inside seals leaking and an end play at 0.0025 when the maximum should be 0.003.

Resetting or Cycling of Circuit Breakers

A circuit breaker must not be reset or cycled unless doing so is consistent with the explicit procedures specified in the QRH and the AFM. However, resetting or cycling of the circuit breaker is permitted if, in the judgement of the captain, it is necessary for the safe completion of the flight.

In most flap failure events, FECU circuit breakers were recycled by technical staff on the ground, which clears the problem. The manufacturer's FIM states to perform a bite test of the FECU, and if no faults are present, a reset of the associated circuit breakers will rectify the issue. Aircraft were returned to service without any further maintenance inspection and/or troubleshooting.

When the flight crew left Vancouver, nothing in the available TAF indicated that the weather conditions at destination would be below the published minima. The weather conditions reported to the flight crew, once established on final, indicated ceilings above the published minimum descent altitude (MDA). However, the visibility was below the published landing visibility. Published landing visibilities are advisory only. They are not limiting and are intended to be used by pilots only to judge the probability of a successful landing. Considering the poor visibility, the surface wind, and the runway surface condition, the probability of a successful landing was low.

When the flight crew received the special weather observation, the aircraft was not yet configured for landing. When the flight crew carried out the missed approach and selected the flaps up, the "FLAP FAIL" message was received.

The opposite runway was equipped with an instrument landing system (ILS) and could have been an option to the flight crew since it provides lower minima. However, considering the surface wind direction, its velocity and the runway surface conditions, it would have been risky to try a landing on Runway 15. Furthermore, the fuel on board at the time of the missed approach was above the minimum diversion fuel requirement by 1312 pounds; therefore, the flight crew diverted the flight to the alternate airport.

While in the climb, the flight crew attempted to solve the problem, without success. Without cruise performance data available for this flap configuration, the flight crew used the FMS fuel prediction to determine if they could reach Fort St. John. Had the aircraft burned fuel as planned from Vancouver to Prince George and had it departed Vancouver without the 360 pounds of extra fuel, it would have run out of fuel before reaching Fort St. John. However, the crew's decision to divert to Fort St. John was timely, and reduced the risk of running out of fuel.

The issue of flap failures on the CL-600-2B19 aircraft has been known for many years. Operators have implemented a standard of recycling circuit breakers on the ground to deal with the problem of flap failure. The manufacturer's FIM also states to perform a bite test of the FECU, and if no faults are present, a reset of the associated circuit breakers will rectify the issue. This has been done so regularly by crew and/or maintenance personnel that it has become an acceptable practice throughout the aviation industry.

Data provided during the investigation indicate that water ingress into the flap system, combined with cold weather operation, is the leading cause of the flap system failure. In June 2005, new flap actuators were installed on all Canadian aircraft in accordance with AD CF1998-14R4, Part V. The investigation revealed that the problem of water ingress still exists, even on these new models of actuators. When contaminants get into the actuator housing, this will eventually lead to contamination of the actuator's moving parts and result in restrictions to movement. Bombardier has put effort into solving the problem by informing worldwide operators through service letters, service bulletins and other publications. Unfortunately, the problem still exists and the number of reported flap failures in Canada is increasing.

The ambient temperature limitation range for actuators has been established at −40°C to 75°C (−40°F to 167°F) by the manufacturer, Eaton Aerospace. During flight, flap actuators are operated regularly at temperatures lower than −40°C. The Bombardier AMM permits the low-temperature torque check to be carried out at temperatures as low as −51°C. The investigation was unable to establish consequences of operating these actuators at temperatures lower than the ambient temperature limitation of −40°C.

The investigation revealed that actuators with cycles as low as 2657 cycles had failed because of contamination. The maintenance program for the flap actuator system does not require special inspection for contamination at an established timeframe. In fact, the AMM prescribed a low-temperature torque check only if water ingress is suspected. The currently established maintenance program is not adequate in that it does not detect problems in the actuators at an early enough stage to prevent flap failure; therefore, a re-analysis of the CRJ flap system maintenance program using MSG-3^{Footnote 5} should be emphasized.

Replacement of Teflon spring seals by new steel washers in the flexible drive shaft in October 2006 may have reduced and/or stopped the water to ingress the system. However, contaminated flap actuators already installed on aircraft will continue to deteriorate and eventually lead to a flap failure. In fact, bench checks combined with a low-temperature torque check are a more accurate method to identify defective actuators. Aircraft flap actuators that were tested in January 2007 did not have the new steel washer modifications because they were not immediately available.

Maintenance records for the 21 November 2006 incident show that a noticeable amount of water was extracted from the actuators' ball nuts during the greasing process. The AMM specified that a low-temperature torque check be accomplished whenever water is suspected in the system. The maintenance record review of C-GJZF had shown that a number of parts were replaced during the process of troubleshooting the flap failures (November 2006 to January 2007).

Documented maintenance records clearly demonstrate that Air Canada Jazz maintenance organization was dealing with a varying array of symptoms. There is no consistency between the troubleshooting procedure in the FIM and the AMM. Maintenance personnel followed the prescribed troubleshooting technique in their FIM but did not use the AMM following the discovery of water in the flap actuator system on 22 November 2006. It was only in January 2007 that three of the eight actuators were removed and failed the low-temperature torque check at the ACTS facility. It appears that the replacement of these three actuators resolved the flap failure problem on C-GJZF. A thorough knowledge of the flap system and consistency in the maintenance documentation would have allowed the maintenance personnel to identify and solve the problem sooner.

The following TSB Engineering Laboratory report was completed:

• LP 114/2006 – FDR/CVR Download and Analysis

This report is available from the Transportation Safety Board of Canada upon request.

Findings as to causes and contributing factors

1. The maintenance program for Bombardier CL-600-2B19 flap system actuators in place at the time of the occurrence did not allow for the detection of problems in the flap actuators at an early enough stage to prevent flap failure.
2. The flaps failed at the 45-degree position, increasing drag significantly. The subsequent increase in fuel consumption required the crew to declare an emergency and divert to Fort St. John, which was a closer airport, landing with less than 10 minutes of fuel remaining.
3. A thorough knowledge of the flap system and consistency in the maintenance documentation would have allowed the maintenance personnel to identify and solve the problem sooner.
4. Repetitive flap failures on C-GJZF were the consequence of faulty actuators caused by contamination such as water.

Findings as to risk

1. Water ingress into the flap system, combined with cold weather operations, is the leading cause of flap system failure on CL-600-2B19 aircraft.
2. The quick reference handbook (QRH) does not take into consideration the impact of flap failures at 45° following a missed approach. Consequently, the flight crews are not fully aware of the impact it would have on the aircraft climb performance for obstacle clearance or the impact on fuel consumption.
3. There is no cruise performance data available with flaps extended. Therefore, the flight crew could not determine the optimum altitude and speed to attain the best fuel economy.

Other Finding

1. The practice of recycling a circuit breaker to rectify a problem has inherent risks; however, in this occurrence, it was a reasonable action on the part of the crew.

Safety action taken

On 01 December 2006, Air Canada Jazz issued Flight Operations Memo 06-257 to its pilots entitled CRJ Fuel Policy Adjustment. A risk-based assessment was completed and eight airports were identified to be isolated enough to warrant an extra 30 minutes of fuel contingency when the forecast weather is less than 1000 feet and the visibility is 3 miles. This memo was effective immediately and is now part of the company fuel policy for flight planning purposes. Air Canada Jazz initiated a conference with Air Canada Technical Services (ACTS), Eaton Aerospace, and Bombardier to discuss the design, operation, and support of the recent flaps and actuator issues. Shortly after, Bombardier announced the formation of a flap working group, including six operators, whose mandate is to work with Eaton Aerospace and Bombardier to complete a system redesign to remove the high seasonal failures of the flap system.

Air Canada Jazz has been an active participant in the flap working group and has assisted in the creation of the maintenance task currently being applied to the entire fleet via the Airworthiness Directive (AD) and Service Bulletin SB601R27-150.

At the beginning of January 2007, Air Canada Jazz formalized a process where any Canadair Regional Jet (CRJ) 100/200 that experienced a flap failure would require senior management approval before the aircraft was returned to service.

On 14 February 2007, the TSB issued Aviation Safety Advisory A06Q0188-D2-A1 (Potential Fuel Exhaustion Due to a CL-600-2B19 Flap Failure) to Transport Canada (TC). The Safety Advisory suggests that Transport Canada may wish to advise other Canadian CL-600-2B19 operators and those foreign regulatory authorities that administer CL-600-2B19 aircraft of the circumstances of this occurrence and the possible impact of flap system failures on fuel management.

As a result of this Safety Advisory, Bombardier Aerospace issued All Operators Message (AOM) 1047, dated 10 March 2007, to alert all operators of this incident and the possible impact of flap system failures on fuel management.

TC drafted a document outlining CRJ flap operational issues and considerations. This document will be offered to Bombardier for its review and awareness. The document will be transmitted to all affected operators of Canadian-registered aircraft, as well as foreign Civil Aviation Authorities, by way of a Service Difficulty Advisory.

On 16 February 2007, the TSB issued Board Concern A06Q0188-D1-C1 (Bombardier CRJ Flap Failures) to the Honourable Lawrence Cannon, P.C., M.P. Minister of Transport. The Board Concern states that, despite best efforts by the industry and regulators to reduce the number of flap failures in the CRJ fleet, that number is increasing. The Board requested that the Minister advise the Board of its action plan, both short and long term, to substantially decrease the number of flap failures on CRJ aircraft.

The Minister advised that short- and medium-term actions will include increasing awareness through Bombardier Aerospace AOMs and aircraft flight manual revisions. Long-term solutions will include a full system review to increase flap reliability through design and maintenance requirement changes.

On 01 March 2007, the TSB issued Aviation Safety Advisory A06Q0188-D3-A1 (Maintenance Intervals on Bombardier CRJ Flap System Actuators) to TC. The Safety Advisory states that, since 2005, there has been an increasing number of flap failures experienced by CRJ aircraft and suggests that TC, in conjunction with the manufacturers and operators, may wish to initiate a review of maintenance requirements for the actuators on CRJ aircraft.

As a result of this Safety Advisory, Bombardier Aerospace and TC Engineering are reviewing the existing Certification Maintenance Requirements (CMRs) for the CRJ flap system, including the overall system design.

On 18 July 2007, TC issued AD CF-2007-10 addressing the Bombardier CL-600-2B19 aircraft flap failures. The AD became effective on 31 July 2007 and includes both the operational and maintenance requirements.

This report concludes the Transportation Safety Board's investigation into this occurrence. Consequently, the Board authorized the release of this report on 25 October 2007.

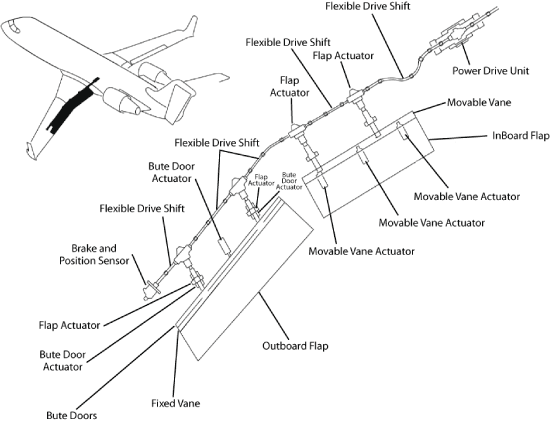

Appendix A - Flap Drive System
