Air transportation safety investigation A19W0133

This is the summary of a class 5 occurrence to which TSB investigators deployed. The investigation is now closed.

Table of contents

    Collision with terrain
    Piper PA-18-150
    Camrose, Alberta

    The occurrence

    On , a privately operated Piper PA18-150 aircraft (registration C-GGVC, serial number 18-7609024X) was conducting a local flight near a farm 25 nautical miles east of Camrose (CEQ3), Alberta. The aircraft had arrived at the farm earlier in the afternoon and picked up a passenger for a short flight. After landing in the field across from the main farm yard just south of the road, and dropping off the passenger, the aircraft took off heading eastbound and climbed out steeply.

    At 1645 Mountain Daylight Time, approximately 90 feet above ground level, the aircraft stalled, entered a spin to the left, and struck power lines. The aircraft broke the top insulating wire and then bridged the next two conductor lines with the right wing. The aircraft fell to the ground and burst into flames. The aircraft was consumed by the post-crash fire. The pilot, the sole occupant on board, was fatally injured. The aircraft was equipped with a 121.5 MHz emergency locator transmitter (ELT). No ELT signal was received, and the ELT was consumed in the post-impact fire.

    There were no records from NAV CANADA of a flight plan being filed or a weather briefing being given to the pilot.

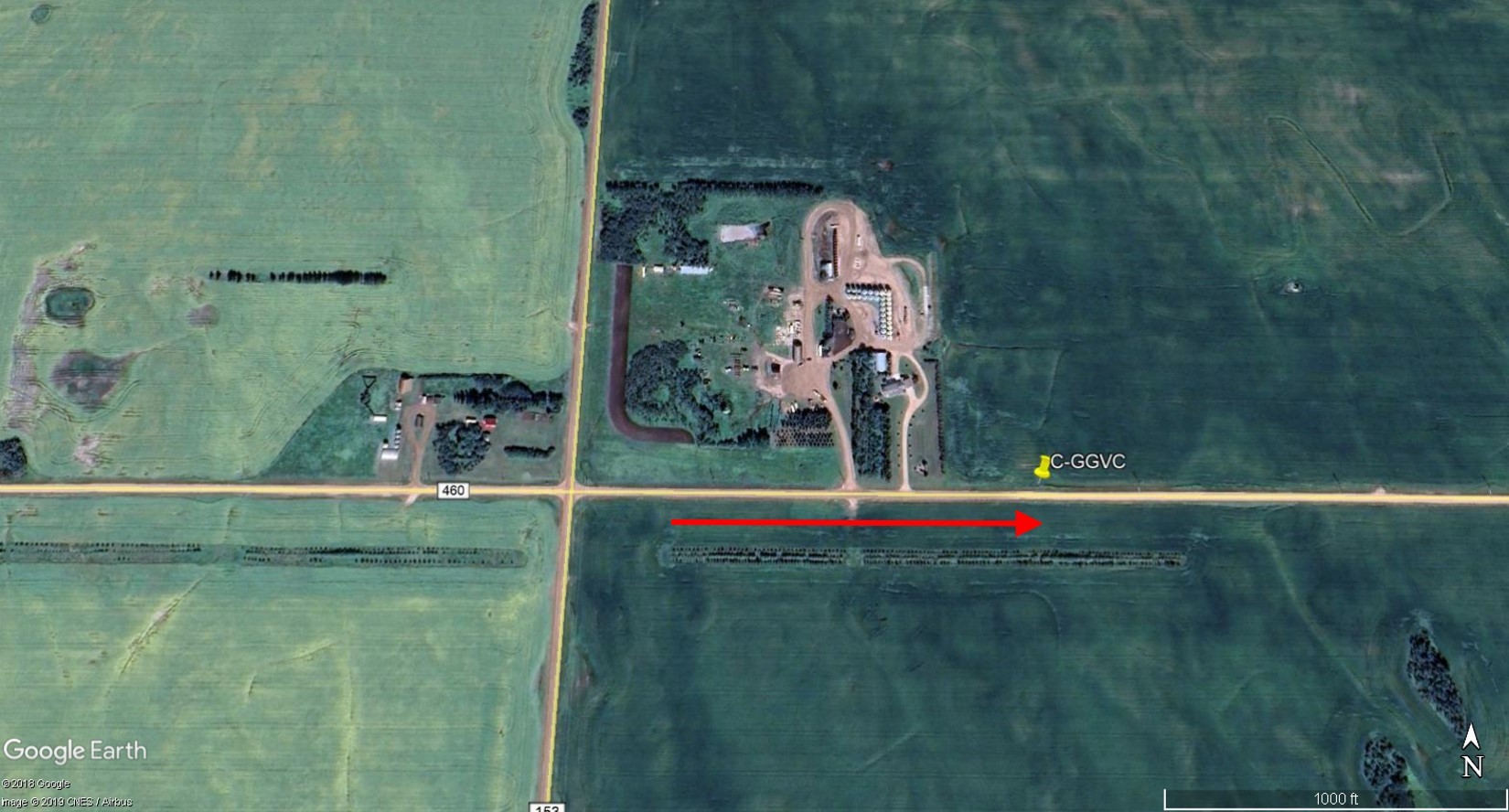

    Figure 1. C-GGVC take-off path (red arrow) and accident site (yellow pin) (Source: Google Earth, with TSB annotations)
    C-GGVC take-off path (red arrow) and accident site (yellow pin) (Source: Google Earth, with TSB annotations)

    The aerodrome routine meteorological report (METAR) issued at 1600 for Edmonton International Airport (CYEG), Alberta, located 58 nautical miles west-northwest of the accident site, indicated the following:

    • winds 360° true (T) at 10 knots
    • visibility 20 statute miles
    • ceiling overcast at 2300 feet
    • temperature 1°C
    • dew point −4°C
    • altimeter setting 30.16 inches of mercury

    The aircraft was found in the ditch on the north side of Township Road 460, 1500 feet east of Range Road 153. The aircraft fuselage was oriented north to south; the impact was non-survivable.

    The degree of breakup and damage from the impact and post-impact fire precluded any detailed assessment of the flight control circuit and aircraft systems. The portions of the flight control circuit, engine, propeller, and flight instruments that were examined did not exhibit any failures that would have prevented normal operation.

    According to the records reviewed, the aircraft was certified and maintained in accordance with the existing regulations. There were no outstanding defects noted in the maintenance or aircraft logs and the aircraft was being operated within the weight and balance design limits.

    The pilot held a private pilot licence rated for single engine land aeroplanes, and a night rating. The pilot’s total flight hours at the time of the accident are unknown. As of 16 July 2019, the pilot had 1373.8 hours total flight time recorded in his personal logbook.
